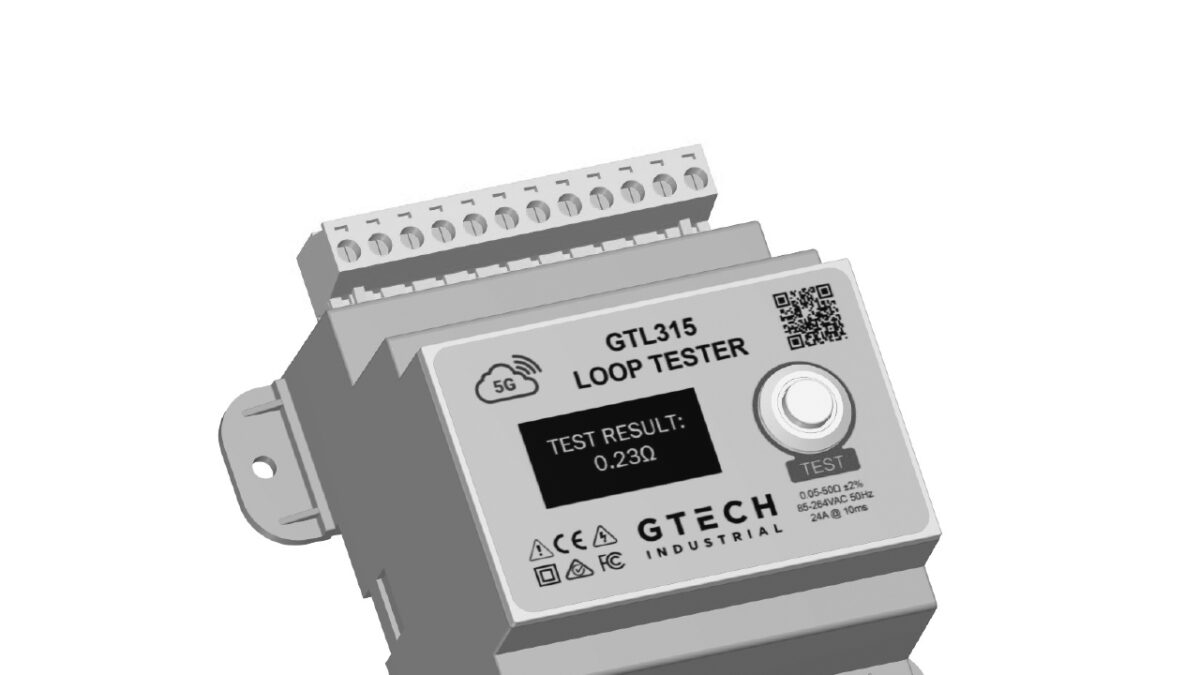

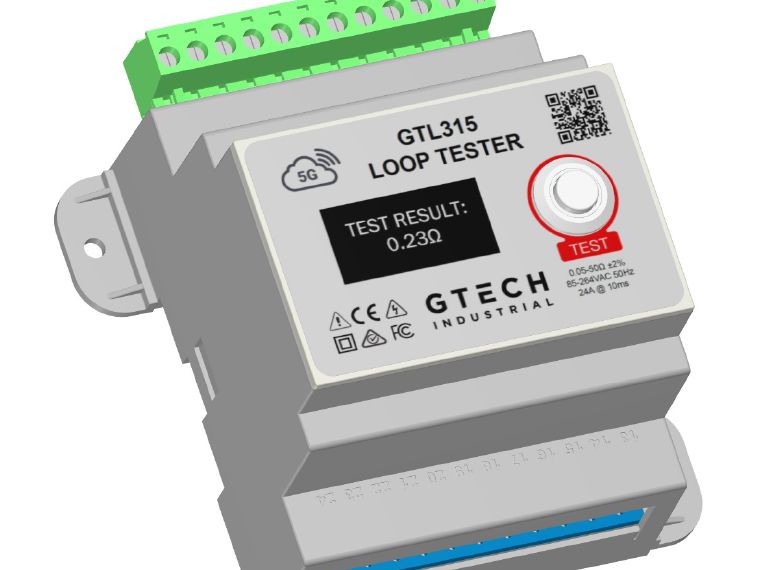

The Fault Loop Monitor is a new product coming to market. It delivers proactive electrical safety by automatically testing earth fault loop integrity at configurable intervals, detecting unsafe voltage or impedance before faults escalate, and enabling rapid alarm response. This product helps protect electrical distribution networks, EV charging stations and installation switchboards.
Product details
- Ability to execute an earth fault loop test at a preset time interval – 1 minute to 7 days
- Ability to alarm out of spec parameters – Voltage, impedance
- Impedance test level adjustable – pass/fail = 0.1 to 5ohms
- Early detection of neutrals with increased impedance – allowing early repair before becoming dangerous
- Patent # 2025903327
Specification
- Voltage – 230VAC, 50Hz
- Output – C/O relay with clean contacts. 2amp.
- Communication – loT, 5G
- Identify – location of fault
- Real time clock
- DIN rail mounting
Applications
- Electrical distribution networks – monitor overhead and underground services for high resistance connections
- Electric vehicle charging stations – protect against unsafe conditions that can arise when charging a vehicle
- Installation switchboards – detect issues with PEN conductors
